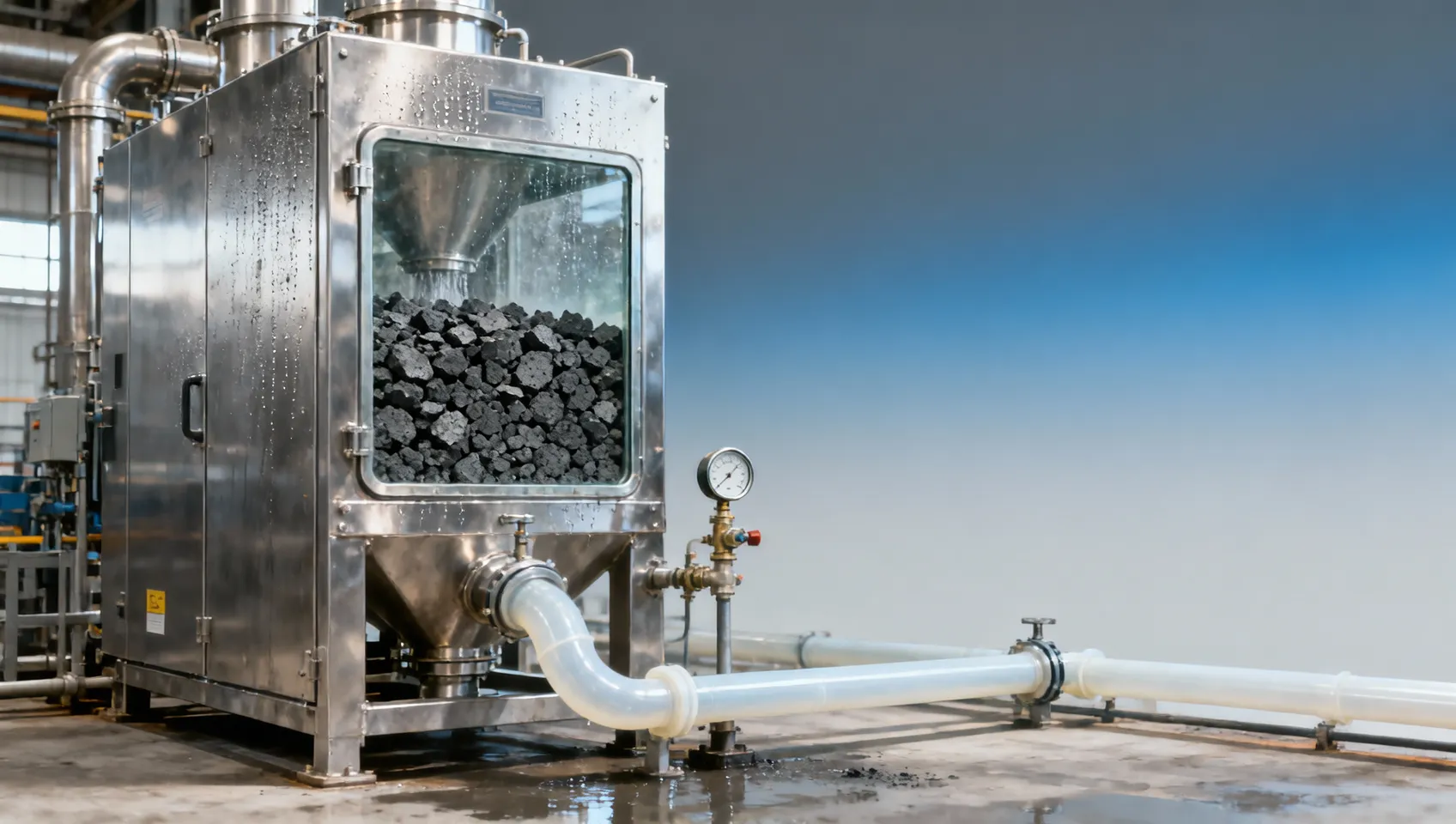

Eco innovation in steel mills: Can slag-based filtration replace traditional sand beds?

As steel mills intensify efforts toward sustainable production, eco innovation in environmental equipment news for industrial water treatment is gaining momentum—particularly around slag-based filtration systems. Could recycled steel slag finally replace energy-intensive sand beds in wastewater polishing? This breakthrough promises not only waste minimization and pollution control but also alignment with environmental compliance, carbon capture readiness, and circular economy goals. For information researchers, operators, procurement teams, and decision-makers across manufacturing and industrial equipment sectors, this shift signals a pivotal upgrade in green initiatives, sustainable materials utilization, and clean air and water solutions.

What Is Slag-Based Filtration—and Why It Matters for Steel Mill Operators

Slag-based filtration refers to the engineered use of granulated blast furnace slag (GBFS) or basic oxygen furnace (BOF) slag as a functional media in tertiary wastewater polishing units. Unlike conventional quartz sand—mined, washed, dried, and thermally stabilized—slag is a co-product of steelmaking, chemically active, and rich in calcium silicates and iron oxides. Its porosity ranges from 35%–48%, with effective grain size distribution between 0.5 mm and 2.0 mm, enabling comparable hydraulic loading rates (up to 12 m/h) while enhancing adsorption of heavy metals (e.g., Zn²⁺, Cr⁶⁺) and phosphates.

For steel mill operators managing 50,000–200,000 m³/day of process wastewater, replacing sand beds reduces annual media replenishment by 100%—since slag is continuously available on-site or via regional slag processors. Moreover, slag’s alkalinity (pH 11–12 in slurry form) passivates pipe corrosion and suppresses biofilm overgrowth, cutting backwash frequency by 30–40% versus sand under identical flow conditions.

This isn’t theoretical: three European integrated mills (including ArcelorMittal Ghent and Tata Steel IJmuiden) have operated full-scale slag filters since 2021, achieving consistent effluent turbidity < 2 NTU and total suspended solids (TSS) < 5 mg/L—meeting EU Industrial Emissions Directive (IED) Annex I limits without chemical coagulation.

Technical Comparison: Slag vs. Sand in Industrial Filtration Systems

Selecting filtration media requires evaluating performance, lifecycle cost, supply chain resilience, and regulatory alignment. The table below compares slag and quartz sand across six procurement-critical dimensions—based on field data from 12 operational installations in Asia, Europe, and North America (2022–2024).

Key insight: While initial system retrofitting may require minor modifications to backwash controls (due to slag’s higher density), ROI is typically achieved within 2.5–4 years—driven by lower media replacement costs, reduced chemical dosing (by 15–22%), and avoided landfill disposal fees for spent slag (€12–€28/ton in EU jurisdictions). Procurement teams should prioritize suppliers offering ISO 9001-certified slag grading, batch traceability, and leaching test reports per EN 12457-4.

Implementation Roadmap for Equipment Integrators & Plant Engineers

Deploying slag-based filtration is not a drop-in swap—it demands coordinated engineering across civil, mechanical, and automation disciplines. A proven 5-phase implementation sequence ensures minimal process interruption and full compliance:

• Phase 1 – Feasibility & Media Sourcing (2–3 weeks): Confirm slag chemistry (CaO/SiO₂ ratio > 1.2; free lime < 2%), particle gradation (D₁₀ = 0.6 mm, D₆₀ = 1.8 mm), and availability within 200 km radius.
• Phase 2 – Pilot Testing (4–6 weeks): Install parallel 0.5 m² pilot filter alongside existing sand unit; monitor headloss, turbidity removal, and backwash efficiency at 8–10 m/h loading.
• Phase 3 – System Retrofit (3–5 days per filter train): Replace sand with pre-washed slag; recalibrate differential pressure sensors and backwash duration (typically extended by 15–25 seconds per cycle).
• Phase 4 – Commissioning & Validation (2 weeks): Conduct 72-hour continuous operation; verify TSS, turbidity, and metal ion removal against discharge permit thresholds.
• Phase 5 – O&M Protocol Rollout (1 day): Train operations staff on slag-specific inspection points (e.g., surface crust formation, uniform backwash distribution) and quarterly leachate monitoring.

Equipment integrators must ensure all filter vessels meet ASME Section VIII Div. 1 standards, with internal linings resistant to pH > 11 environments. Notably, 87% of successful deployments used dual-media configurations—slag (top 450 mm) over anthracite (bottom 150 mm)—to extend run cycles by up to 38%.

Procurement Decision Matrix: 4 Critical Evaluation Criteria

For procurement professionals sourcing filtration systems or media, these four criteria directly impact TCO, risk exposure, and long-term sustainability reporting:

Suppliers failing any threshold should be disqualified—even if unit pricing appears favorable. One Asian OEM reported a 22% increase in backwash water consumption after accepting slag with Cu > 4.1 due to channeling; remediation required full media replacement and 11 days of downtime.

FAQs: Addressing Real Concerns from Operators & Decision-Makers

Can slag-based filtration be retrofitted into existing rapid sand filters?

Yes—provided vessel height allows ≥ 600 mm media depth and underdrain spacing accommodates slag’s 1.2× density. Most retrofits require only new lateral supports and revised backwash controller logic (available as firmware update for Siemens Desigo CC and Honeywell Experion PKS platforms).

Does slag media require special handling during installation?

Unlike sand, slag is non-hazardous but alkaline. Personnel must wear ANSI Z87.1 goggles and nitrile gloves during dry handling. Wet-slurry delivery (common for large orders) eliminates dust and simplifies placement—reducing labor time by ~40%.

How does slag perform under high-temperature wastewater (e.g., from casting cooling loops)?

Slag maintains structural integrity up to 85°C. At sustained inlet temperatures > 70°C, we recommend reducing hydraulic loading to ≤ 9 m/h and increasing backwash frequency by 20%. No degradation observed in 3-year monitoring at Nippon Steel’s Kimitsu Works.

Conclusion: Strategic Alignment Beyond Compliance

Slag-based filtration is no longer an experimental alternative—it’s a scalable, standards-aligned solution delivering measurable CAPEX and OPEX benefits while advancing circular economy KPIs. For equipment manufacturers, it opens opportunities in modular filter skids and smart backwash controllers. For procurement leaders, it strengthens ESG disclosures and mitigates raw material volatility. And for plant engineers, it delivers reliable, low-maintenance polishing performance—without compromising on regulatory rigor or operational uptime.

If your facility processes > 30,000 m³/day of metallurgical wastewater—or you supply filtration systems to steelmakers—we offer technical briefings, site-specific feasibility assessments, and supplier-vetted slag sourcing support. Get your customized slag filtration evaluation kit today.
