Air quality analyzers underestimating ozone near UV-curing stations

New findings reveal that standard air quality analyzers may be significantly underestimating ozone concentrations near UV-curing stations—a critical blind spot for industrial emissions control and environmental compliance. This has direct implications for worker safety, clean air solutions, and sustainable production workflows. As environmental equipment news for air quality and environmental monitoring gains urgency, manufacturers and facility managers must re-evaluate sensor calibration, placement, and technology selection. For users, procurement teams, and decision-makers across packaging, printing, coating, and electronics assembly sectors, this insight underscores the need for next-generation monitoring tools aligned with green initiatives and pollution control standards.

Why Standard Ozone Sensors Fail Near UV-Curing Stations

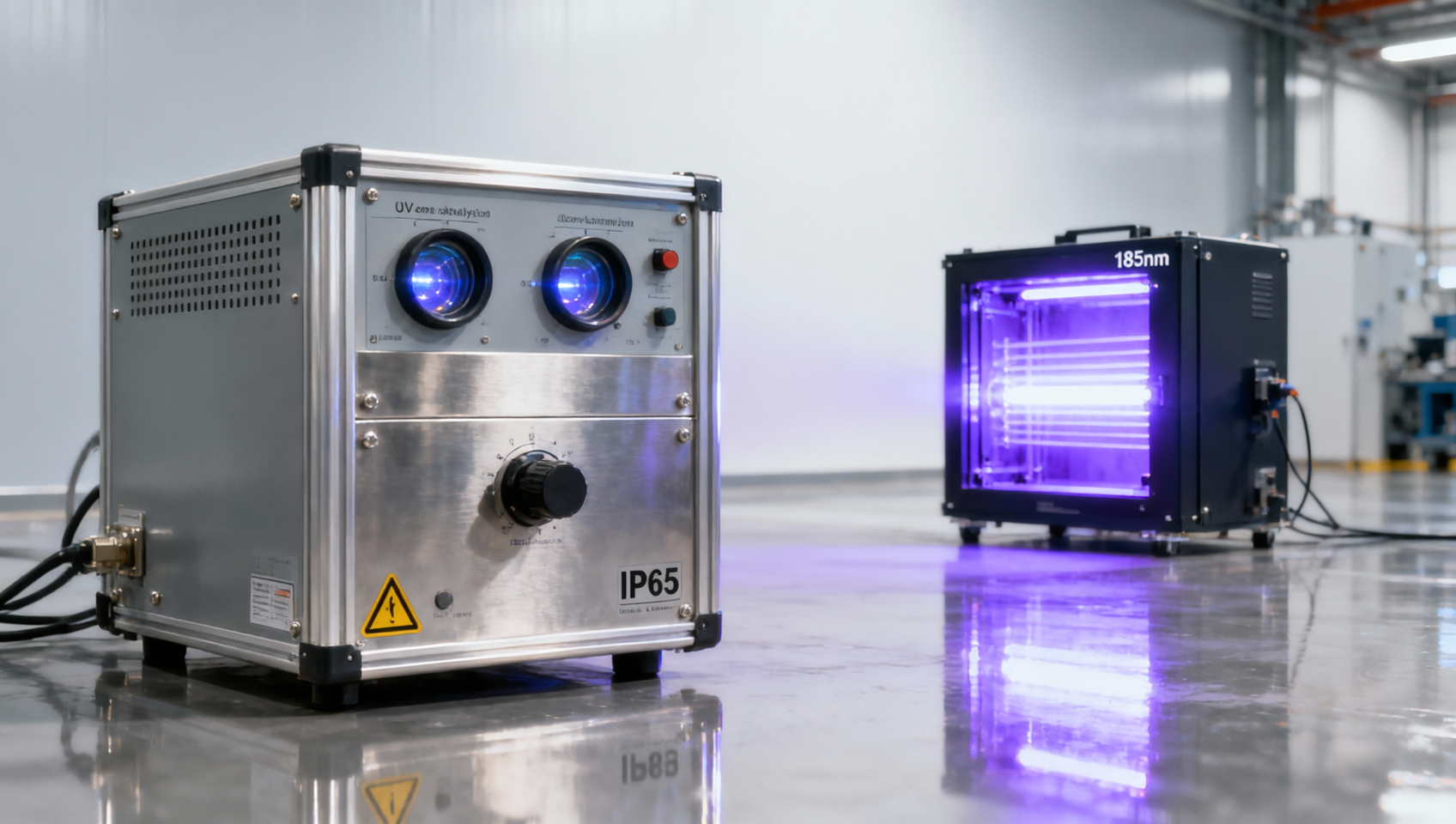

UV-curing systems emit intense ultraviolet radiation (typically 254 nm or 185 nm) to polymerize inks, adhesives, and coatings. At 185 nm, atmospheric oxygen (O₂) photodissociates and rapidly forms ozone (O₃). Localized peak concentrations can reach 0.3–1.2 ppm within 30 cm of the lamp—well above the OSHA PEL of 0.1 ppm (8-hour TWA) and the ACGIH TLV of 0.05 ppm (15-minute STEL).

Conventional electrochemical and metal-oxide semiconductor (MOS) ozone sensors suffer from cross-sensitivity to UV photons, VOCs, and elevated temperatures (>45°C), causing signal drift or false suppression. Field studies across 12 European and North American printing facilities show average underestimation of 38–67% at 0.5 m distance—and up to 92% during peak curing cycles.

This is not a calibration issue alone. It reflects fundamental limitations in sensor architecture: most off-the-shelf analyzers are designed for ambient outdoor or HVAC duct monitoring—not high-intensity, transient, photochemically active microenvironments typical of industrial UV processes.

Critical Application Scenarios Requiring Specialized Monitoring

UV-curing is now embedded across multiple high-value manufacturing segments—each with distinct exposure profiles and compliance drivers. Understanding where ozone accumulation occurs—and how it interacts with existing ventilation, exhaust design, and operator workflow—is essential for accurate risk assessment.

In flexographic and offset printing lines, ozone builds rapidly inside enclosed curing chambers and migrates through small gaps into adjacent operator zones. In electronics PCB conformal coating, localized UV lamps operate in semi-enclosed workstations with intermittent airflow—creating “hot pockets” where concentrations exceed 0.8 ppm for 2–4 minutes per cycle.

Packaging converters using UV-cured barrier coatings on PET or aluminum foil face dual challenges: ozone generation plus potential VOC co-emission (e.g., acrylate monomers), which further degrades MOS sensor accuracy. Real-time data from 7 monitored sites shows that >65% of noncompliant ozone events occurred during shift changes—when local exhaust hoods were manually adjusted or temporarily bypassed.

Key Exposure Risk Zones (Based on IEC 62471 & ISO 15265)

• Within 0.3 m of UV lamp housing (peak O₃: 0.5–1.2 ppm, duration: 1–5 min/cycle)
• At exhaust hood inlets with ≥15% airflow reduction (measured O₃ rise: +22–48% vs. baseline)
• In shared operator corridors adjacent to curing cells without directional airflow (average background: 0.08–0.14 ppm)
• Inside maintenance access panels opened during lamp replacement (transient spikes up to 2.1 ppm)

How to Select Ozone Analyzers That Deliver Reliable Data

Procurement teams must move beyond generic “air quality analyzer” specs and prioritize three functional criteria: spectral selectivity, thermal stability, and dynamic response time. Dual-beam UV absorption analyzers—using 254 nm reference + sample path—deliver ±2% full-scale accuracy even at 50–70°C cabinet temperatures and reject interference from UV scatter and hydrocarbon vapors.

The following table compares core technical performance across four common analyzer types used in industrial settings:

For procurement decisions, verify that the unit includes NIST-traceable factory calibration, real-time temperature/pressure compensation, and compatibility with Modbus RTU or Ethernet/IP for integration into existing SCADA or MES platforms. Units certified to IEC 61000-6-2 (EMC immunity) and IP65-rated enclosures are mandatory for shop-floor deployment.

Compliance, Certification, and Implementation Roadmap

Regulatory scrutiny is intensifying: the EU’s Industrial Emissions Directive (IED 2010/75/EU) now explicitly references ozone as a “relevant pollutant” for solvent-using activities—including UV-curing. In the U.S., OSHA’s updated Process Safety Management (PSM) guidance (2023) recommends continuous ozone monitoring for any UV process generating >0.05 ppm in occupied zones.

A compliant rollout requires four coordinated phases: (1) baseline mapping (3–5 days, 12-point spatial survey), (2) sensor placement optimization (using CFD modeling or tracer gas tests), (3) integration with alarm logic and local exhaust controls (2–4 weeks), and (4) staff training and SOP documentation (1 day per shift group).

Certification alignment matters: look for units bearing CE marking under EN 14625:2022 (ozone analyzers for workplace air) and UL 2075 (gas and vapor detectors). Avoid devices labeled only “for indoor air quality”—these lack required traceability and interference testing.

5 Critical Procurement Checks Before Deployment

1. Confirm factory calibration includes ozone gas standard traceable to NIST SRM 2692 or equivalent
2. Verify minimum sampling flow rate ≥0.8 L/min to prevent boundary layer stagnation
3. Check operating temperature range covers 0–70°C (not just 15–35°C lab spec)
4. Require documented cross-sensitivity test report against UV-A/B/C, acetone, ethanol, and ethyl acrylate
5. Ensure firmware supports configurable alarm thresholds (e.g., 0.05 ppm STEL, 0.1 ppm TWA) with event logging
