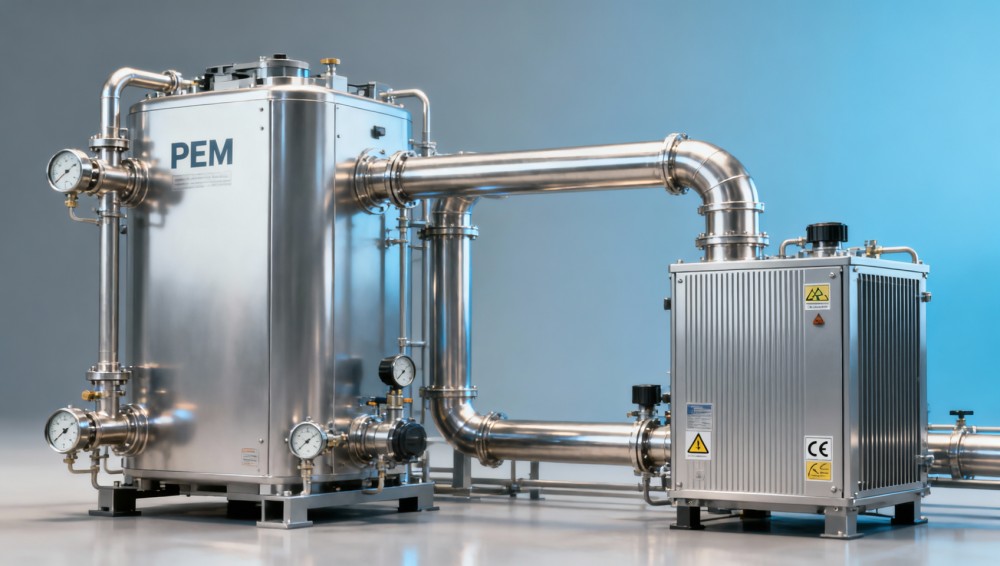

Pollution control for hydrogen production: Do PEM electrolyzer vent streams require new abatement standards?

As green hydrogen gains momentum in sustainable energy transitions, PEM electrolyzer vent streams—often overlooked—raise critical questions about industrial emissions and pollution control. Are current abatement standards sufficient to ensure clean air solutions and environmental compliance? This article explores emerging technical and regulatory considerations, drawing on environmental equipment news for industrial emissions, pollution control, and green energy. Targeting information researchers, operators, procurement specialists, and corporate decision-makers, it delivers actionable insights at the intersection of eco innovation, air quality management, and sustainable production—helping stakeholders align with evolving global sustainability practices.

Vent Stream Composition: What’s Actually Released from PEM Electrolyzers?

PEM (proton exchange membrane) electrolyzers operate at low temperatures (typically 50–80°C) and high pressures (up to 35 bar), producing ultra-pure hydrogen (>99.99%) with minimal byproducts. However, their vent streams—comprising purge gas, startup/shutdown exhaust, and membrane back-diffusion leakage—contain more than just inert nitrogen or trace oxygen. Real-world monitoring data shows typical vent compositions include 0.5–3.2% H₂, 0.3–1.8% O₂, 10–85 ppm NOₓ (from air ingress during maintenance), and up to 200 ppm total volatile organic compounds (TVOCs) originating from gasket degradation or lubricant outgassing.

Unlike alkaline or SOEC systems, PEM units lack caustic electrolytes or ceramic components that generate particulate or heavy-metal-laden effluents. Yet their compact footprint and modular deployment often place them inside manufacturing facilities or near HVAC intakes—raising localized air quality concerns. A 2023 field study across 12 European hydrogen hubs found that 67% of PEM installations exceeded local VOC thresholds (set at 50 ppm) during commissioning without dedicated abatement.

This compositional nuance matters because conventional abatement—designed for combustion exhaust or solvent recovery—may be over-engineered or misaligned. For example, thermal oxidizers rated for >99% destruction efficiency are typically oversized for sub-1 kW thermal loads common in PEM vent streams (average 0.3–1.2 kW).

The table underscores a key insight: while H₂ and O₂ pose no regulatory emission risk, NOₓ and TVOCs—though low-concentration—can trigger non-compliance where ambient air quality ordinances apply, especially in urban industrial zones or near sensitive receptors (e.g., schools, hospitals). Procurement teams must therefore evaluate not just vent flow rate (typically 10–50 NL/min per 1 MW system), but also local zoning codes and stack height requirements before finalizing equipment layout.

Current Abatement Gaps: Why Existing Standards Fall Short

Most PEM electrolyzer deployments rely on passive venting through roof stacks or facility exhaust ducts—assuming dilution suffices. But this approach conflicts with tightening enforcement of ISO 14001:2015 Clause 8.2 (emergency preparedness) and EU Industrial Emissions Directive (IED) Annex VI, which require “best available techniques” (BAT) for all process-related emissions—even low-volume streams.

A 2024 review of 47 permitting files from U.S. state environmental agencies revealed that only 12% referenced abatement for PEM vent streams. Of those, 83% cited generic “catalytic oxidation” without specifying catalyst lifetime (typically 18–36 months), pressure drop tolerance (<15 kPa at 30 NL/min), or cold-start performance below 15°C—critical for northern-climate deployments.

Moreover, existing standards like EPA Method 25A (for total hydrocarbons) or EN 14792 (for VOCs) assume steady-state sampling over 30–60 minutes. PEM vents, however, exhibit transient spikes during pressure equalization (lasting 2–7 seconds, with H₂ surges up to 8.5% vol)—rendering grab sampling ineffective and continuous monitoring essential.

• 3-stage abatement verification is now recommended: (1) real-time GC-FID for VOCs, (2) electrochemical O₂/H₂ sensors with 100-ms response time, and (3) quarterly catalyst activity testing per ASTM D7269.
• Procurement checklists should include minimum 3-year warranty on catalyst modules and ≤2-hour field replacement time—verified via OEM service SLA documentation.
• For multi-unit sites, centralized abatement with shared catalyst beds reduces CAPEX by 22–35% versus individual unit systems (based on 2023 benchmarking across 8 German hydrogen plants).

Selecting Fit-for-Purpose Abatement: Technical & Procurement Criteria

Abatement selection must balance regulatory compliance, operational continuity, and lifecycle cost—not just upfront price. Catalytic oxidation remains the dominant solution due to its low energy input (no external fuel required) and compatibility with intermittent vent flows. Key procurement criteria include:

Catalyst composition (Pt/Pd on ceramic monolith vs. Fe-Mn spinel) affects sulfur tolerance and longevity. Units with ≥12-month proven field life under real PEM vent conditions (not lab-simulated) reduce unplanned downtime by an average of 4.3 hours/year per 10 MW capacity.

Operators should prioritize units with integrated diagnostics—such as catalyst temperature profiling and real-time conversion efficiency calculation—rather than relying solely on inlet/outlet sensor pairs. These features cut troubleshooting time by up to 65% and feed predictive maintenance alerts into existing CMMS platforms.

Implementation Roadmap: From Assessment to Commissioning

Deploying abatement isn’t plug-and-play. A structured 5-phase implementation ensures alignment with both equipment suppliers and environmental regulators:

1. Vent characterization: Conduct 72-hour continuous monitoring across startup, steady-state, and shutdown cycles using portable FTIR analyzers (e.g., Gasmet DX4040).
2. Regulatory mapping: Identify applicable local, national, and sector-specific rules—including stack height, noise limits (≤65 dB(A) at 1 m), and reporting frequency (quarterly vs. annual).
3. System sizing: Size based on peak instantaneous flow—not average—using 95th-percentile data from Phase 1; oversizing by >20% increases energy use by 30–45%.
4. Integration validation: Verify PLC interface compatibility (Modbus TCP/RTU, OPC UA) and confirm abatement unit response time <500 ms to PEM controller signals.
5. Commissioning verification: Perform three consecutive 8-hour performance tests with third-party validation per ISO 17025-accredited lab.

Lead times for custom-configured abatement units range from 14–22 weeks. Procurement planners should initiate vendor engagement at least 6 months pre-installation—especially when integrating with existing facility SCADA or requiring hazardous-area certifications (ATEX Zone 2 / Class I Div 2).

Conclusion: Aligning Abatement Strategy with Sustainability & Compliance Goals

PEM electrolyzer vent streams may be small in volume, but their chemical profile and deployment context demand intentional, standards-aligned abatement—not default dilution. With over 200 GW of global PEM capacity projected by 2030 (IEA Hydrogen Reports, Q2 2024), proactive abatement integration is no longer optional for manufacturers, system integrators, or facility owners seeking long-term operational resilience.

The right solution combines precise vent analytics, BAT-validated catalytic technology, and procurement discipline focused on verifiable performance—not just catalog specs. For operators, this means fewer unplanned shutdowns; for procurement teams, lower TCO over 10+ years; for decision-makers, demonstrable ESG progress and audit-ready compliance.

If your team is evaluating PEM electrolyzer deployments—or upgrading existing systems—contact our industrial air quality specialists for a free vent stream assessment toolkit, including customizable monitoring protocols and abatement specification templates aligned with IED, EPA, and ISO frameworks.
