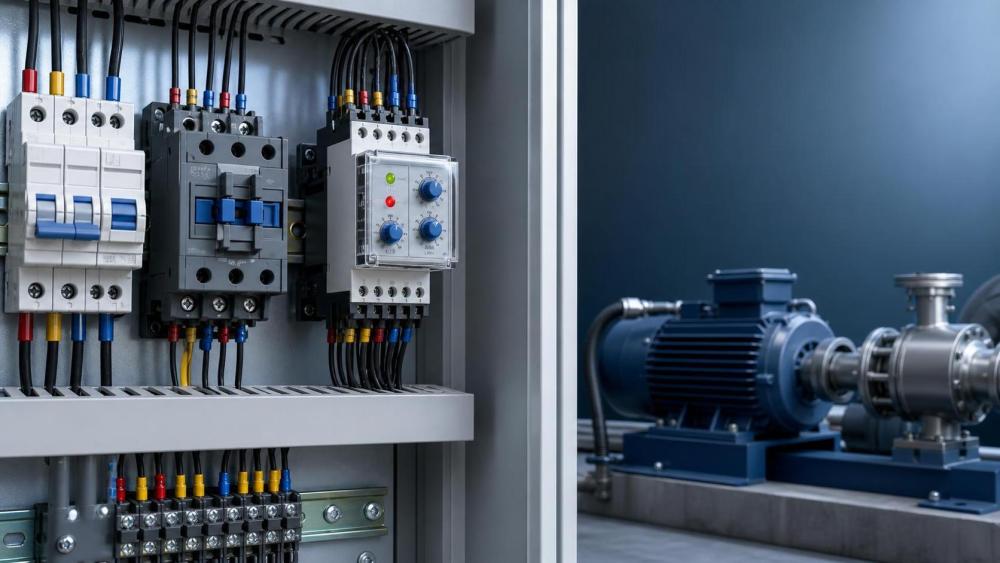

How to Select a Circuit Protection Relay for Motor Overload and Fault Protection

Start With the Motor, Load Profile, and Failure Consequences

The best circuit protection relay begins with a clear understanding of the motor, the driven load, the starting method, and the operational consequences of failure.

Technical evaluators should first identify motor rated current, voltage, frequency, phase configuration, service factor, insulation class, and the applicable regional electrical standard.

These values establish the baseline for relay selection, but they do not define the complete protection requirement for a real production environment.

A lightly loaded conveyor motor and a high-inertia compressor motor may have similar rated currents while requiring very different trip characteristics and starting tolerances.

Consider whether the load is constant torque, variable torque, intermittent duty, cyclic duty, or subject to sudden mechanical jams during normal operation.

Variable-speed drives also change the assessment, because output waveforms, low-speed cooling limitations, and drive diagnostics can influence protection architecture.

Evaluate the effect of a motor stoppage on personnel safety, product quality, upstream equipment, downstream processes, energy use, and contractual delivery commitments.

Motors supporting pumps, fans, lifting systems, compressors, and critical process equipment usually justify more advanced protection and clearer diagnostic capabilities.

Match Overload Protection to the Motor’s Thermal Limits

Overload protection is the central function of many circuit protection relay arrangements, but accurate selection requires more than choosing the closest adjustable current range.

The relay must protect windings from sustained overcurrent while allowing legitimate operating conditions such as motor starting, short load peaks, and approved service-factor operation.

Start by selecting an adjustable relay range that includes the motor full-load current without placing normal operation too close to either adjustment limit.

A relay set near the extreme end of its range can provide less practical adjustment margin when operating conditions, ambient temperatures, or future motor replacements change.

Electronic overload relays often provide more precise settings, selectable trip classes, phase imbalance protection, and event data than traditional thermal overload devices.

Thermal overload relays remain suitable for many conventional starters, particularly where simplicity, cost control, and proven maintenance practices are more important than detailed diagnostics.

Verify whether the protection setting should reflect motor nameplate current, service factor, feeder conditions, or documented requirements from the motor manufacturer.

Do not increase the overload setting merely to stop nuisance trips, because repeated trips may reveal undersized equipment, mechanical resistance, voltage problems, or inappropriate starting methods.

Select the Correct Trip Class for Starting and Locked-Rotor Conditions

Trip class determines how quickly the overload relay responds during high-current conditions, making it one of the most important choices for motors with demanding starts.

Common trip classes such as Class 10, Class 20, and Class 30 describe approximate trip performance under specified overload current conditions.

A faster trip class can improve motor protection during locked-rotor conditions, but it may trip during legitimate acceleration when the driven load has high inertia.

A slower trip class gives more starting time, yet it also allows the motor windings to experience elevated thermal stress for a longer period.

Review measured or calculated start current, acceleration time, starts per hour, cooling time between starts, and the motor’s permitted locked-rotor endurance.

For centrifugal pumps and fans, a standard trip class may often be appropriate, while crushers, loaded conveyors, mixers, and compressors may need additional analysis.

Where a motor starts frequently, relay thermal memory becomes especially relevant because it reflects accumulated heating from previous starts and overload events.

Use manufacturer coordination tables and motor protection curves rather than relying solely on general trip-class assumptions for safety-critical or high-value equipment.

Coordinate the Relay With Short-Circuit and Branch-Circuit Protection

A circuit protection relay typically handles overload and abnormal operating conditions, while fuses or circuit breakers provide the rapid interruption needed for short-circuit faults.

These protective devices must be coordinated as a system, because an overload relay alone cannot safely interrupt the high fault currents available in industrial power networks.

Determine the prospective short-circuit current at the motor control panel, including transformer capacity, upstream feeder impedance, generator contribution, and parallel supply sources.

Then confirm that the selected breaker, fuse, contactor, starter, and relay assembly has an adequate short-circuit current rating for the installation.

Coordination Type 1 generally permits component damage after a short circuit, whereas Type 2 coordination aims to preserve starter functionality after fault clearance.

For production-critical machinery, Type 2 coordinated assemblies can reduce restoration time, replacement costs, and uncertainty after an electrical fault occurs.

Check whether the proposed circuit protection relay is approved with the selected contactor and short-circuit protective device under relevant IEC or UL coordination data.

Mixing components from different suppliers may be technically possible, but documented compatibility is often necessary to maintain ratings, compliance, and predictable fault performance.

Assess Protection Functions Beyond Basic Overcurrent Detection

Modern electronic relays can identify several abnormal electrical conditions that basic thermal overload devices may not detect quickly or communicate clearly.

Phase loss protection is important for three-phase motors because single-phasing can cause excessive current and rapid heating in the remaining energized windings.

Phase imbalance detection helps identify uneven supply conditions, loose connections, damaged contacts, or upstream issues before they cause prolonged thermal stress.

Phase sequence monitoring can prevent reverse rotation, which is valuable for pumps, compressors, conveyors, fans, and machines with direction-sensitive mechanical assemblies.

Underload or dry-run protection can identify broken belts, unloaded pumps, lost suction, empty hoppers, or disconnected process loads in suitable applications.

Ground-fault monitoring may be required where insulation deterioration, moisture exposure, cable damage, or personnel safety risks justify earlier fault detection.

Some devices also monitor locked rotor, stall, jam, current asymmetry, overtemperature inputs, and current-related power conditions for expanded operational visibility.

Select only functions that support identifiable failure modes, because unnecessary complexity can increase commissioning effort and create alarms that operators do not trust.

Confirm Compatibility With the Motor Starter and Control Architecture

The circuit protection relay must fit the electrical and control architecture, including the starter type, available control voltage, enclosure space, wiring approach, and communication requirements.

For direct-on-line starters, confirm compatibility with the contactor, thermal setting range, auxiliary contacts, reset mechanism, and required protection coordination documentation.

Star-delta starters and reversing starters require additional attention because relay placement and current measurement method can affect the actual protection setting.

Soft starters require protection settings that accommodate ramp behavior, bypass contactors, and the motor current profile during acceleration and deceleration.

For variable-frequency-drive applications, determine whether protection remains within the drive, requires an external motor protection device, or depends on motor thermal sensors.

Check input and output requirements for start inhibition, remote reset, trip signaling, alarm signaling, emergency-stop integration, and programmable logic controller interfaces.

Networked relays can communicate current values, trip causes, warning thresholds, and device status through protocols such as Modbus, EtherNet/IP, PROFINET, or EtherCAT.

Communication should be selected when maintenance teams can act on the data, rather than simply adding connectivity without clear ownership of alarms and records.

Consider Environment, Installation Quality, and Maintenance Practices

Relay performance depends on the conditions surrounding the motor control panel, including ambient temperature, vibration, dust, humidity, altitude, and electromagnetic interference.

Thermal overload relays can be more sensitive to ambient temperature conditions, so compensation characteristics should be checked for hot panels or outdoor installations.

Electronic relays may offer broader accuracy and diagnostic capabilities, but they still require appropriate power quality, grounding, wiring practices, and enclosure protection.

Confirm terminal capacity, conductor size, torque requirements, mounting orientation, clearance distances, and whether the device supports the panel assembly’s installation method.

In high-vibration environments, loose terminals can create phase imbalance, overheating, and intermittent trips that resemble relay failure but originate in installation quality.

Maintenance teams should be able to read settings, identify trip causes, reset the device safely, and access replacement parts without extensive panel disassembly.

Where spare parts policies favor standardization, selecting a common circuit protection relay family can simplify training, inventory management, commissioning, and troubleshooting.

However, standardization should not override application requirements when a critical motor needs a different trip class, sensing method, or protection function.

Use Diagnostics and Lifecycle Cost to Make the Final Decision

Purchase price is only one part of relay selection, particularly when motor failures can interrupt production, damage equipment, waste materials, or require urgent field service.

Evaluate whether the relay records the last trip cause, current levels, thermal capacity, event history, operating hours, and warning conditions before shutdown.

Clear diagnostics help technical teams distinguish between genuine motor overload, phase loss, mechanical binding, supply instability, incorrect settings, and control-system issues.

This information reduces mean time to repair because maintenance personnel can investigate the probable cause instead of repeatedly resetting the starter without evidence.

For distributed or remote sites, communication-enabled relays can support condition monitoring, centralized alarms, energy analysis, and planned maintenance interventions.

Assess the availability of local support, documentation, firmware policies, replacement lead times, certification coverage, and long-term product continuity from the supplier.

A lower-cost relay may create a higher lifecycle cost when it lacks coordination data, produces frequent nuisance trips, or provides no usable information after failure.

The appropriate choice is the relay that provides adequate protection, documented compliance, operational visibility, and maintainability for the actual risk level of the motor.

Build a Practical Selection Checklist Before Issuing a Purchase Specification

Before approving a circuit protection relay, document the motor nameplate data, load behavior, starting current, acceleration duration, expected duty cycle, and environmental conditions.

Specify the required overload range, trip class, phase protection functions, short-circuit coordination level, starter compatibility, control voltage, and communication interfaces.

Request manufacturer documentation confirming the proposed relay, contactor, and protective device combination meets the intended IEC, UL, or local electrical requirements.

Confirm that settings can be locked or controlled appropriately, especially where unauthorized adjustment could compromise motor protection or disrupt validated process conditions.

Include commissioning tests for phase loss, overload response, trip indication, reset behavior, interlocks, remote signals, and communication points where installed.

Record final relay settings in panel documentation and maintenance records, since undocumented adjustments are a common source of later troubleshooting delays.

For high-consequence motors, consider reviewing relay selection with the motor supplier, starter manufacturer, system integrator, and site electrical engineering team.

A well-selected circuit protection relay is not simply an accessory in the motor circuit; it is a coordinated protection component supporting safety, uptime, and equipment life.

Conclusion: Select for the Application, Not Only the Current Rating

Technical evaluators should treat relay selection as a system decision involving motor thermal limits, starting performance, fault levels, control architecture, and maintenance capability.

The strongest specification combines correct overload settings, appropriate trip class, documented short-circuit coordination, relevant fault functions, and usable diagnostic information.

When these factors are evaluated together, industrial teams can reduce nuisance trips, identify real failures faster, protect motor assets, and improve production reliability.
